Beschrijving

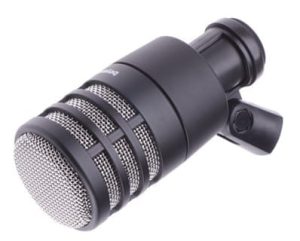

The Opus 99 has been developed especially for miking bass drums. The strong neodymium magnet system and a mass reduced special diaphragm give the microphone a powerful reproduction with

excellent transient characteristics. The optimised frequency response guarantees audio quality which has until now, only been achieved by using high-quality condenser microphones. The hypercardioid polar pattern helps eliminate feedback in live applications and allows an optimum channel separation between different instruments. The microphone can operate at very high sound pressure levels without loss of sound quality and virtually no distortion. With the optional ST 99 stand the Opus 99 can be placed directly inside or in front of the bass drum.

Features

– Optimised frequency response

– Hypercardioid polar pattern

– Integrated elastic suspension

– Rugged construction

– Aluminium / zinc cast

Specifications:

– Transducer type: Dynamic

– Operating principle: Pressure gradient

– Frequency response: 30 – 18,000 Hz

– Polar pattern: Hypercardioid

– Open circuit voltage at 1 kHz.: 2.0 mV/Pa

– Magnetic field suppression: > 20 dB at 50 Hz

– Nominal impedance: 280 ohm

– Load impedance: 1000 ohm

– Diaphragm: Hostaphan®

– Casing: Aluminium / zinc cast

– Connector: 3-pin XLR male

– Dimensions: Length: 128.5 mm

– Shaft diameter 23/25 mm

– Head diameter 56 mm

– Weight (without cable): 365 g
