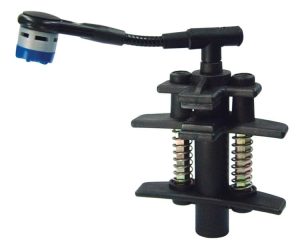

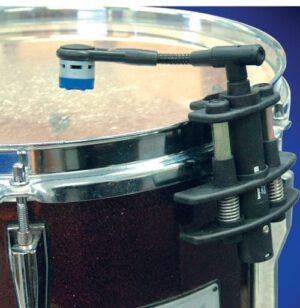

The Opus 88 is an ideal condenser microphone (back electret) for miking drums, especially toms and snare drums. The microphone clamp is equipped with an integrated pre-amp. The microphone capsule is mounted on a short gooseneck allowing optimum positioning. For connection the Opus 88 is fitted with a 3-pin XLR-plug at the microphone clamp. The microphone clamp is also available without pre-amp as MKV 87 with an integrated 3/8″ thread.
Features:
– Short, flexible gooseneck with horizontal swivel joint for optimum positioning
– Rugged construction with rubber shock-mounted microphone capsule
– Patented microphone clamp with integrated pre-amp and XLR connection
– No disturbing cable between microphone head and pre-amp
– Cardioid polar pattern for high-gain-before feedback
– Wide transmission range
– Phantom powering 11 – 52 V
Specifications:
– Transducer type:Condenser (back electret)
– Operating principle: Pressure gradient
– Frequency response: 30 – 20,000 Hz
– Polar pattern: Cardioid
– Open circuit voltage: 5 mV/Pa = -46 dBV
– Nominal impedance: 200 ohm
– Load impedance: > 1 ohm
– Max. SPL at f = 1 kHz: 136 dB (at 48 V phantom power)
– 126 dB (at 12 V phantom power)
– S/N ratio: 64 dB
– A-weighted equivalent SPL: 22 dB
– Supply voltage:11 – 52 V phantom
– (recommended phantom power: 48 V)
– Current consumption: < 6 mA
– Connector: 3-pin XLR, male
– Dimensions
– Clamp (W x H): 85 x 118 mm
– Gooseneck length: 20 mm
– Total length:120 mm
– Weight incl. clamp: approx. 145 g
